HomeGas EnginesJenbacher Type 2: J208
Jenbacher Type 2

Jenbacher Type 2: J208

THE NEXT GENERATION JENBACHER TYPE 2F ENGINE
The reference for durability and reliability – now with higher efficiency!

Introduced in 1976, the Jenbacher Type 2 engine offers high efficiency with a durable and reliable design.

The stationary engine provides excellent durability, while enhanced components and proven control and monitoring give the Type 2 engine outstanding reliability.

More than 1,300 engines delivered since 1976.

J208 – efficient L8-cylinder power generation solution for small-/mid-scale businesses.

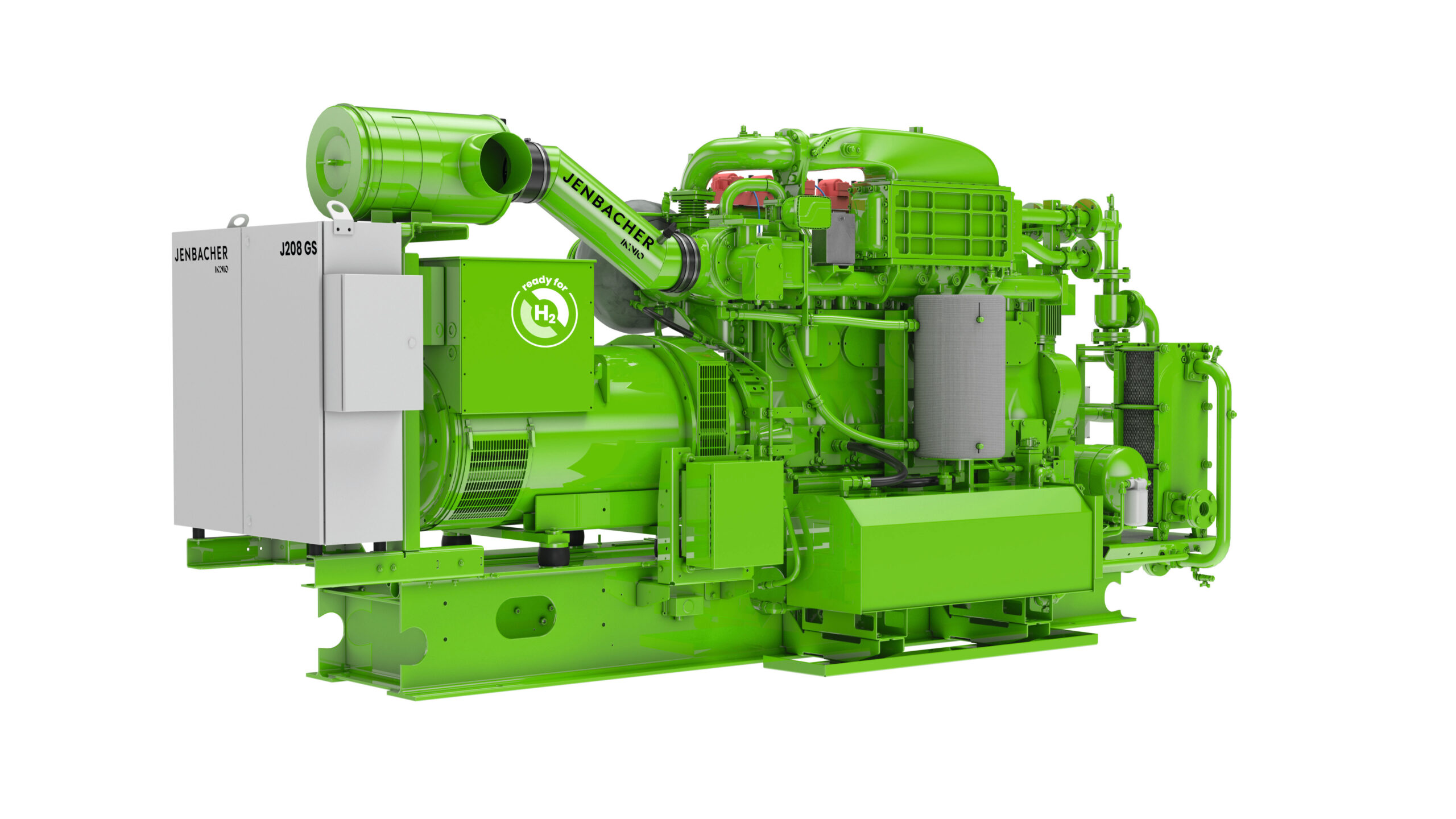

    • 360-kwelFront View of a Jenbacher J208 F Gas Engine
      • 360-kwelFront View of a Jenbacher J208 F Gas Engine (CHP Module)
        • 360-kwelJ320 CONTAINER 1

          Change the scope of supply by clicking on a thumbnail.

        Scope of supply:

        50 Hz

        60 Hz

        * Provided technical data is for information only. Data ranges are calculated considering various gas quality levels and ambient conditions (standard or hot/tropical conditions, etc.).
        Jenbacher can change the technical data unilaterally. In the case of such change, we will update the data on our pages as soon as we can.
        Please reach out to our experts to get help with engines selection, obtain the technical parameters for your gas composition.



        Output and efficiency at generator terminals. Energy input is according to DIN ISO 3046 and DIN 6271, respectively, with a tolerance of + 5%.
        All data according to full load and subject to technical development and modification.
        Based on emission values of 250 and 500 mg/Nm3 NOx at 5% O2 at dry exhaust gas.
        Base for biogas and sewage gas versions: 65% CH4 / 35% CO2.
        Base for landfill gas version: 55% CH4 / 40% CO2 / Rest N2.

        Electrical Output

        Thermal Output

        Voltage

        Electrical Efficiency

        Thermal Efficiency

        L:  x W:  x H:  inches

        Highlights of Jenbacher Type 2F engines

        Building on its proven heritage, the new Jenbacher Type 2F 50 Hz engine now leads the way with next-generation technology innovation that delivers up to a 3 percentage point efficiency boost compared to the earlier engine versions and now up to 360 kWel output without sacrificing its proven reliability or robustness.

        In addition to delivering efficiency as high as 41.8% when operating on pipeline gas, the Type 2F engine is optimized for reduced total hydrocarbon (THC) emissions, future-proof fuel flexibility, and enhanced serviceability.

        Moreover, the latest 2F technology is retrofittable for most of the installed Jenbacher Type 2 fleet.

        Innovative design features

        Jenbacher Type 3F Cylinder Head Bearb

        New cylinder head (4V)

        The new cylinder head has been optimized for better charge exchange and improved cooling. It also offers reduced THC emissions, optimized combustion, and more robust material pairings for valves and valve seats.

        Jenbacher Type 2F Power Unit

        New power unit

        The new connecting rod of the 2F series enables the use of the established piston from the 3F series. This contributes to the lower clearance and thus enables lower THC emissions, better combustion, and lower oil consumption. Other important aspects of the design include a new piston bowl shape and new cylinder liners and scraper rings.

        Jenbacher Type 2F Intercooler

        New intercooler

        The new intercooler offers 40% more power with an intercooler water temperature (ICWT) of 70° C and, therefore, use of the entire mixture’s heat. This not only leads to higher overall efficiency but also to simple installation and a reduction in auxiliary power for the low-temperature circuit.

        Jenbacher Type 3F Valve Train

        New valve train (4V)

        A new valve train with a floating bridge makes service easier.

        Jenbacher Type 3F Camshaft

        New camshaft

        The new Miller camshaft enables greater efficiency of the charge exchange and thus contributes to improved engine efficiency. It also reduces THC emissions.

        Jenbacher Type 2F Ignition Box

        New ignition box

        This latest-generation ignition system, also adopted from the 3F series, enables efficient combustion.



        Scope of supply:

        The Combined Heat and Power Module (CHP Module) allows you to generate power and heat simultaneously at very high total efficiencies, reaching 90% and even more.

        Typical scope of supply:

        • Engine and alternator installed on the frame
        • Control panel, gas train
        • Heat exchangers, including exhaust gas heat exchanger

        CHP Modules can generate hot water or steam at various parameters and can be integrated with your existing heat infrastructure. You can select the option that fits your project’s needs among the various heat recovery schemes provided by INNIO Group.

        The scope of supply can be extended further with various balance of plant (BOP) options. Reach out to our specialists for help in selecting scope of supply and BOP options to fulfill your project’s needs.

        CHP Modules can be installed inside a building or container. To see more details about INNIO Group’s Jenbacher containerized solutions, click here.

        Balance of Plant (BOP)

        The right auxiliary equipment is of critical importance in ensuring that a power solution is economically feasible and provides your business with reliability, availability, and efficiency. Click on the provided BOP options to learn more.
        Reach out to our experts to select the configuration that fits your business’ needs.

        Available BOP elements may vary, depending on the engine and application type.

        • Higher efficiency

          Improved fuel efficiency by up to 3 percentage points

        • Higher output

          Output of up to 360 kWel without compromising on proven reliability and robustness

        • Reduced THC emissions

          For a smaller ecological footprint

        • Lower oil life-cycle costs

          Lower oil consumption and longer service life of the lubricating oil

        • Convenient upgrade

          Upgrade installed engines to the latest technology at any time - ideally during a minor or major overhaul.

        • Future-proof fuel flexibility

          The future-proofed F-generation Type 2 fuels include renewable energy sources such as biogas and energy sources such as propane or special gases. It is also possible to equip the engine with a "Ready for Hydrogen" option.

        Watch the video on the new Jenbacher 208 F engine:

        Customer-only Resources

        folder

        Get access to almost 2,000 Resources (such as Drawings, Service Technician Instructions, User Manuals, & more…) for Jenbacher Gas Engines with our dedicated Portal which includes advanced (yet easy to use!) search capabilities to find what you’re looking for.

        newsletter

        Subscribe to our monthly Services Newsletter and additional materials to stay up-to-date with the latest Jenbacher technical news.

        If you already have
        an access, please LOG IN

        or

        Contact Us to Sign-up

        Contact Us to Sign-Up

        Type 2 Case studies

        slide-project-america
        • Case Study Stawag - Foto

          The Jenbacher emissions reduction package for full control over your exhaust gas levels

          "The Jenbacher OEM solution for emissions reduction offers engine-specific and complementary technologies from a single source. As a result, INNIO Group is helping us in our efforts to achieve a climate-neutral energy supply and at the same time making it easier for us to comply with the prescribed emission limits."

          Manuel Kirfel, Development/Sales Heat, STAWAG - Stadt- und Städteregionswerke Aachen AG

        • Case Study RAG Austria - Foto

          RAG Austria (AUT)

          GREEN ENERGY YEAR ROUND
          Harnessing the summer sun for winter energy using a Jenbacher hydrogen solution

          Location

          Gampern, Austria

          Installed engines

          1 x J412

          Electrical output

          530 kW

          Thermal output

          550 kW

          Total efficiency

          80.4%

          Energy source

          Green hydrogen,alternatively natural gas

          Commissioning

          June 2024

        • Case Study Stawag - Foto

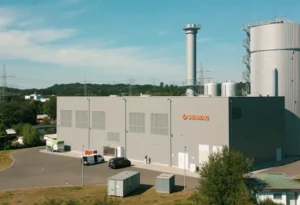

          Stawag (GER)
