Jenbacher Type 2

Jenbacher Type 4

Based on the proven design concepts of Jenbacher Type 3 and Type 6 engines, Type 4 gas engines are characterized by high power density and outstanding efficiency.

Enhanced control and monitoring provide easy maintenance capabilities, as well as excellent reliability and availability.
5,800+ engines delivered since 2002.

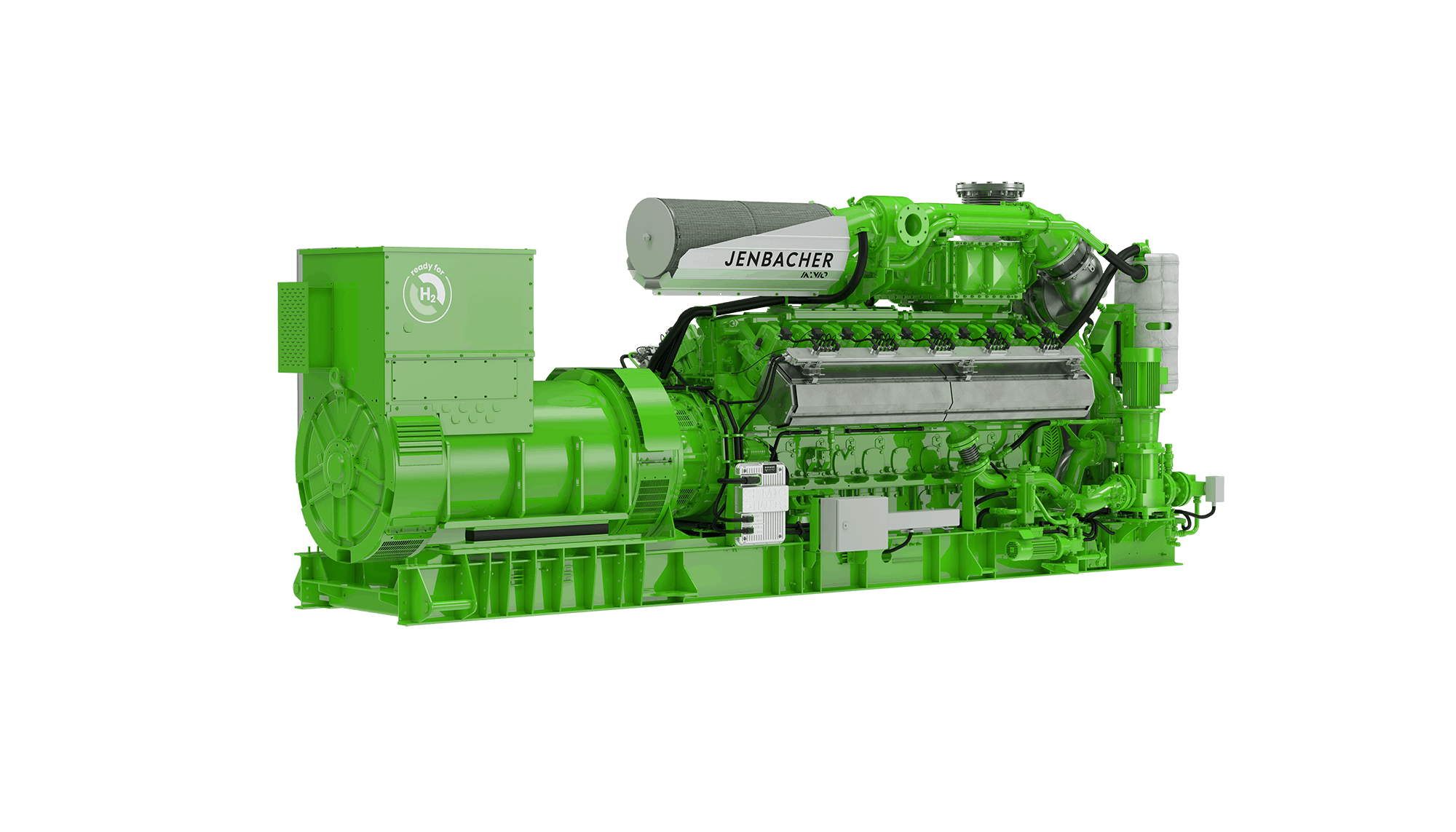

    • Front View of a Jenbacher J420 D/E Gas Engine
    • Front View of a Jenbacher J420 Gas Engine
    • Front View of a Jenbacher J416 Gas Engine
    • Front View of a Jenbacher J412 Gas Engine
      • Front View of a Jenbacher J420 D/E Gas Engine (CHP Module)
      • Front View of a Jenbacher J420 Gas Engine (CHP Module)
      • Front View of a Jenbacher J416 Gas Engine (CHP Module)
      • Front View of a Jenbacher J412 Gas Engine (CHP Module)
        • J320 CONTAINER 1
        • J320 CONTAINER 2
        • J320 CONTAINER 3

        Change the scope of supply by clicking on a thumbnail.

        Scope of supply:

        50 Hz

        60 Hz

        * Provided technical data is for information only. Data ranges are calculated considering various gas quality levels and ambient conditions (standard or hot/tropical conditions, etc.). Jenbacher can change the technical data unilaterally. In the case of such change, we will update the data on our pages as soon as we can. Please reach out to our experts to get help with engines selection, obtain the technical parameters for your gas composition. Output and efficiency at generator terminals. Energy input is according to DIN ISO 3046 and DIN 6271, respectively, with a tolerance of + 5%. All data according to full load and subject to technical development and modification. Based on emission values of 250 and 500 mg/Nm3 NOx at 5% O2 at dry exhaust gas. Base for biogas and sewage gas versions: 65% CH4 / 35% CO2. Base for landfill gas version: 55% CH4 / 40% CO2 / Rest N2.

        Electrical Output851 - 1,429 kW

        Thermal Output916 - 1,672 kW

        Voltage480V - 13.8kV

        Electrical Efficiencyup to 41.9 %

        Thermal Efficiencyup to 48 %

        Discover models:

        Highlights of Jenbacher Type 4 engines

        Jenbacher Type 4 engines have the same design, emissions control, and waste gas-to-energy capabilities as their Type 2 and Type 3 counterparts, plus high power density and outstanding efficiency in their power range.

        • The high-power turbocharger allows optimal operation at higher air intake temperature and altitude.
        • A four-valve cylinder heads features enhanced swirl and channel geometry using advanced calculation and simulation methods, resulting in optimal cooling and combustion conditions.
        • The Type 4’s connecting rod reduces bearing wear and is easy to maintain.

        Applicable gas types include: natural gas, associated petroleum gas (flare gas), propane, biogas, sewage gas, landfill gas, coal mine gas, other special gases (e.g. coke, wood, and pyrolysis gases).

        Scope of supply:

        Combined Heat and Power Module (CHP Module) solutions allow customers to generate power and heat simultaneously at a very high total efficiencies, reaching 90% and even more.

        Usual scope of supply:

        • Engine and alternator installed on the frame
        • Control panel, gas train
        • Heat exchangers including exhaust gas heat exchanger

        CHP Modules can generate hot water or steam at various parameters and can be integrated with your existing heat infrastructure. You can select the option that fits your project’s needs among the various heat recovery schemes provided by Jenbacher.

        The scope of supply can be extended further with various balance of plant options (BOP) offered by Jenbacher, reach out to our specialists for help in selecting scope of supply and BOP options to fulfill your project’s needs.

        CHP Modules can be installed inside a building or inside a container. To see more details about Jenbacher’s Containerized solutions, click here.

        Proven Efficiency

        Offering superior efficiency with an innovative engine concept, Type 4 engines save on fuel without sacrificing flexibility or reliability.

        The flexibility to do more

        The Type 4 is available in 50 and 60 Hz and features fuel and solution flexibility—making it an excellent choice for more than 10 different applications.

        Reliability you can count on

        With their reliability, dependability and high degree of availability, it’s easy to see why over 2,000 Type 4 engines have been delivered.

        Balance of Plant

        The right auxiliary equipment is of critical importance in ensuring that a power solution is economically feasible and gets your business the most in terms of reliability, availability and efficiency. Click on provided balance of plant options to learn more. Reach out to our experts to select the configuration that fits your business’ needs.

        Available BOP elements may vary depending on the engine and application type.

        Type 4 Case studies

        slide-project-america
        • Gasgreen image

          Gasgreen Energia (ECU)

          TURNING LANDFILL GAS INTO CLEAN ELECTRICITY
          Innovative biogas power plant is reducing methane gas pollution in Ecuador

          Location

          Quito, Ecuador

          Installed units

           2 x J320, 3 x J420

          Electrical power

           up to 5 MW

          Total efficiency

           39.6%

          Fuel

          Landfill gas

          Commissioned

          2016, 2017

        • Chengdu image

          Chengdu Chang’an (CHN)

          LANDFILL GAS POWER GENERATION PROJECT
          Delivers renewable, low-emission power and wins praise

          Location

          Chengdu, Sichuan province, China

          Installed units

           20 x J420

          Electrical power

           29.7 MW

          Total efficiency

           41.7%

          Fuel

          Landfill gas

          Commissioned

          2017, 2018

        • Barts image

          Barts NHS Hospital (GBR)

          Jenbacher J420 trigeneration technology plays a lead role in increasing energy security and reducing emissions

          Location

          London, United Kingdom

          Installed units

           1 x J420

          Electrical power

           1.4 MW

          Thermal power

           1.6 MW

          Fuel

          Natural gas

          Commissioned

          2015

        • Istanbul Energy image

          Istanbul Enerji (TUR)

          RENEWABLY POWERING EUROPE’S LARGEST CITY
          Biomass plant in Turkey advances environmental objectives while providing 37 MW of electricity to Istanbul

          Location

          Istanbul, Turkey

          Installed units

           26 x J420

          Electrical power

           36.4 MW

          Buffer storage system

           1200 m3

          El. efficiency

           41.3%

          Fuel

          Landfill gas

          Commissioned

          2021, 2022

        • AGR Greenhouse image

          AGR Fenland Glasshouse (GBR)

          DELIVERING LOW-CARBON POWER AT UK GREENHOUSE
          CHP energy center with an innovative heat pump system delivers power and heat with 30% less CO2 than conventionally heated greenhouses

          Location

          Cambridgeshire, United Kingdom

          Installed units

           1 x J416, 1 x J620, 1 x J624

          Electrical power

           9 MW

          Thermal power

           11.2 MW

          Total efficiency

           101.76%

          Fuel

          Natural gas

          Commissioned

          2022

        • Hefei image

          Hefei Xiaomiao (CHN)

          CONVERTING WASTE TO RENEWABLE ENERGY IN CHINA
          The new organic waste treatment center in Hefei City relies on two Jenbacher J420 gensets to turn kitchen waste into green power

          Location

          China

          Installed units

           2 x J420

          Electrical power

           3 MW

          Total efficiency

           85%

          Fuel

          Biogas

          Commissioned

          2021
