Type 6 E Blow-By System Upgrade
Upgrading to the latest blow-by filter design now used in our Jenbacher Type 6 engines is a smarter, more efficient solution for your equipment. This enhancement to your Jenbacher Type 6 engines allows you to exchange only the filter cartridge—rather than the entire blow-by system—without compromising service intervals or engine performance.
Upgrade for:
What can this upgrade do for you?
- Extended service intervals.
Increased filter surface, advanced filtration media, and the pre-separation system team up to extend service intervals six-fold.. - Lower service costs and increased uptime.
The new exchangeable cartridge and longer service intervals translate to greatly simplified maintenance requirements, significantly reduced service costs, and increased uptime. - Reduced inventory, logistic, and disposal costs.
Because only the filter insert—not the complete filter vessel— needs to be exchanged, the weight and spare part storage space requirements are substantially reduced.
How we get you there?

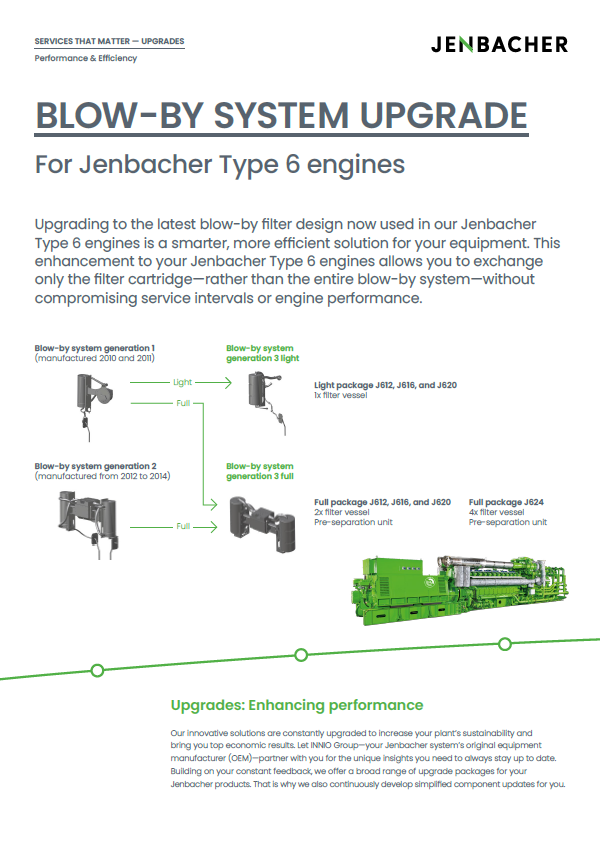

The upgrade packages, available in light and full versions, include a variety of enhancements as well as optional and add-on features. Both packages can be applied during any scheduled service interval.
Light package
Available for Jenbacher J612, J616, and J620 engines with generation 1 blow-by systems, this bundle includes:
— Blow-by filter assembly with filter cartridge
The filter casing remains in place, and only the filter is replaced. The package includes one filter vessel with a removable vessel lid, V-band connection, adapted filter insulation, and a new oil drain system.
— OEM documentation update
Full package
Available for Jenbacher J612, J616, J620, and J624 engines with generation 1 or 2 blow-by systems, this bundle includes:
— Blow-by filter assembly with filter cartridge
The package includes two filter vessels for J612, J616, and J620 engines and four filter vessels for J624 engines, all with removable vessel lid, V-band connection, adapted filter insulation, and a new oil drain system.
— Pre-separator system
The included wire mesh separation element removes coarse oil droplets from the blow-by flow.
— OEM documentation update
Optional/add-on features
(for both light and full packages):
— Gas mixer ring adaptation
This option helps reduce crankcase ventilation system pressure.
— Advanced air filter system
If the engine is not already equipped with this system, it must be upgraded. It delivers extended service intervals and reduced pressure drop
Applicability
Applicable units
| Type 2 | Type 4 |
| Type 3 | Type 61 ✔ |
Why Jenbacher Services?
Enhanced Efficiency and Lower Lifecycle Costs
Bringing proven outcomes across the life cycle of your engines means greater engine efficiency, reduced fuel usage and optimized maintenance intervals via our Conversions, Modifications & Upgrades offerings.
Lower emission
Emissions can be reduced with exhaust gas aftertreatment systems for example, oxidation or SCR catalysts, helping to meet emission regulations.
Flexibility
Best combined with your next service event or overhaul, our upgrades use only certified OEM parts for and are always based on your specific applications.
Controls and Asset Performance Management
Manage, monitor and control your engine. Our Controls simplify proactive maintenance planning and with myplant, you can remotely calculate plant performance every day, with real-time intelligence.
ENERGY SOLUTIONS. EVERYWHERE, EVERY TIME.
Your local power generation experts.
Jenbacher gas engines have been delivered in 100-plus countries.
Resources & Downloads
Consult an expert
Send us a message and we’ll contact you to start the conversation.
Whether you are looking to address your basic service needs – from maintenance requests to day-to-day spare part and consumable requirements – to technical training for your workforce, digital solutions, or even system development plans, our Jenbacher Services experts can advise you on the solution that will be right for you.
1 Product applicable to all Jenbacher Type 6 engines version F, G, and H with advanced air filter system. Engine versions with earlier air filter systems (manufactured before 2010 or design number J G494) must be retrofitted to the advanced air filter system.
